Decoding Air Mobility Command Mission Codes

Transport aircraft operated by Air Mobility Command (AMC) of the USAF routinely use ACARS messages to send status updates to their operations centers. For flight-tracking enthusiasts, these messages contain valuable clues. This article explains how to interpret AMC mission codes.

ACARS messages can be viewed through the website airframes.io

The mission code appears immediately after the callsign. Most AMC transport flights use callsigns beginning with RCH—short for Reach.

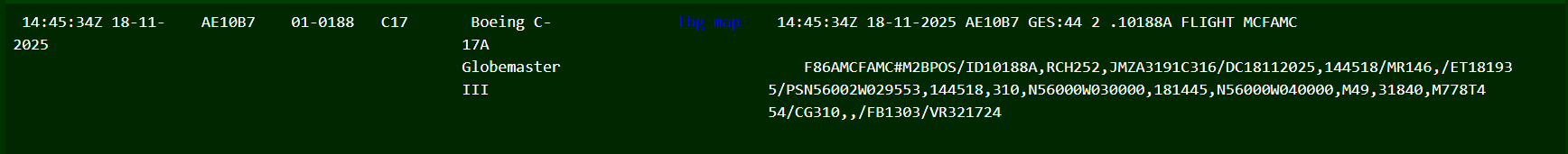

A typical example of a mission code is: JMZA3191C316.
This code is unique to a specific aircraft for the duration of an entire mission.

The first letter is usually J, though A and X are also seen.
The second letter of the initial three-letter group indicates the phase of the mission:

• J – Positioning phase: the aircraft is typically flying empty to a location where it will pick up cargo.
• M – Movement phase: the aircraft is loaded and en route to its destination to deliver cargo.
• V – De-positioning phase: the cargo has been unloaded and the aircraft is returning to base.

The third letter explains the reason for the mission. Most often this is Z, believed to denote Contingency Operations. An M indicates a Special Assignment Airlift Mission.

Next comes a four-character sequence consisting of one letter followed by three numbers. This mission code remains the same for all flight segments that belong to the same mission. The RCH callsign also stays consistent.

The final five characters appear to be linked to the current phase of the mission. These change when a flight transitions from positioning to movement, or from movement to de-positioning.

Special thanks to @armchairAdml on X for sharing key insights into this system.

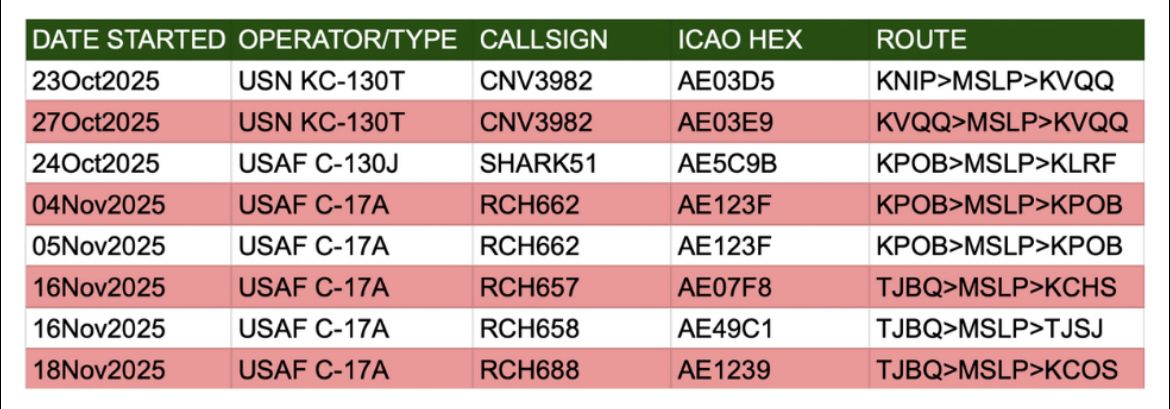

This pattern of mission codes was used by a series of USAF C-17 flights which flew cargo from Djibouti to a small airport in the north of Ghana.

A similar pattern in mission codes was observed when three USAF C-17 aircraft transported drones from the Aguadilla base in Puerto Rico to an airfield known as Comalapa in El Salvador. At least one MQ-9A (tail number 19-4390) was flown to El Salvador.

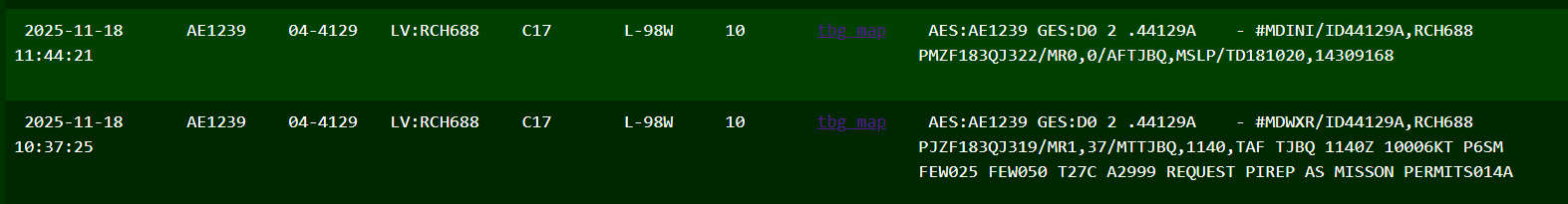

On 18 November, a USAF C-17 flew from Tampa to Aguadilla, where it loaded a drone before continuing to San Salvador. While flying towards Aguadilla the mission code was PJZF183QJ319 (the 10:37:25 timestamp). While on the ground and being loaded the mission code was changed to PMZF183QJ322 (the 11:44:21 timestamp).

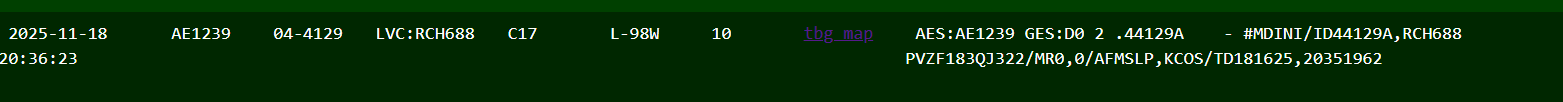

On the flight from San Salvador to Colorado Springs the PVZ code was used.

another code has this structure: AJM315001350

A – Atlantic/East Coast based C-17
J – Positioning flight
M – Special Assignment Airlift Mission

3150 – Mission ID
01 – Aircraft number in the mission
350 – Mission start date in Julian format (16 Dec)

In this case an USAF C-17 flew empty from Ramstein in Germany to Accra in Ghana. The USA provided airlift to support Ghana’s mission to deliver essential equipment, cargo, and personnel to Jamaica’s relief operations.

See for the details and photos this post on X.

When this C-17 departed Accra on its way to Jamaica this mission code was used

AAM315001350

The first three letters mean

A – Atlantic/East Coast based C-17
A – not known but likely cargo is loaded
M – Special Assignment Airlift Mission
